CF200FF
Chengfeng

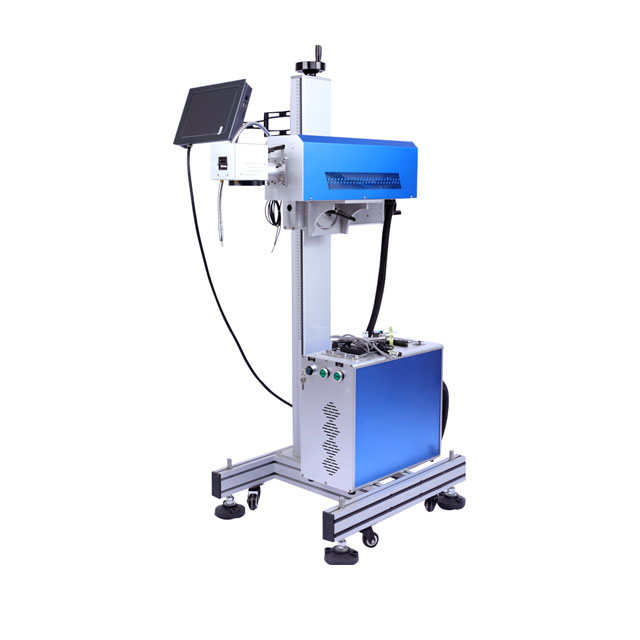

Flying Fiber Laser Marking Machine
1).Long lifetime, over 100,000 hours.
2).Compact laser source with air cooling.
3).2 to 5 times more productive a traditional laser marker or laser engraver.
4).Super quality galvanometer scanning system.
5).High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6).More stable performance.
7).Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
8).Output power is stable, optical mode is good, beam quality is excellent.
9).Marking speed is fast, efficient, and high accuracy.
10).Appearance is professional, operation is easy.
Flying Fiber Laser Marking Machine
1).Long lifetime, over 100,000 hours.
2).Compact laser source with air cooling.
3).2 to 5 times more productive a traditional laser marker or laser engraver.
4).Super quality galvanometer scanning system.
5).High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6).More stable performance.
7).Professional control board and marking software. The software controlling system has the interface of windows and comprises files output by software such as Coreldraw, AutoCAD, Photoshop etc. It can support various file formats such as PLT,DXF,PCX,BMP etc.
8).Output power is stable, optical mode is good, beam quality is excellent.
9).Marking speed is fast, efficient, and high accuracy.
10).Appearance is professional, operation is easy.
Laser power | 20 W,30 W,50 W,100 W |
Laser wavelength | 1064 nm |
Standard marking range | 110*110 mm |
Optional marking range | 110*110 mm, 230*230 mm,300*300 mm Accept custom |
Marking speed | 7000 mm/s |
Marking depth | 0.01~1 mm |
Minimum line width | 0.02 mm |
Minimum character | English: 0.2 x 0.2 mm |
Repeating frequency | 20 KHz~30 KHz |
Location accuracy | ≤0.0176mm |
Marking content | Graphics, text, bar codes, two-dimensional code, date,batch number, serial number,etc |
Graphic format supported | bmp, png, ai, dxf, dst, plt |
Working voltage | Ac 220V±10%.50HZ.5Amp or Ac 110V±10%.50HZ.10Amp |
Laser Galvanometer dimension | 512*80*80 mm |
Power box dimension | 410*282*193 mm |
Net weight | 20 kg |
Standard accessories | Cable connection length 1.7m, footswitch, |
Laser power | 20 W,30 W,50 W,100 W |
Laser wavelength | 1064 nm |
Standard marking range | 110*110 mm |
Optional marking range | 110*110 mm, 230*230 mm,300*300 mm Accept custom |
Marking speed | 7000 mm/s |
Marking depth | 0.01~1 mm |
Minimum line width | 0.02 mm |
Minimum character | English: 0.2 x 0.2 mm |
Repeating frequency | 20 KHz~30 KHz |
Location accuracy | ≤0.0176mm |
Marking content | Graphics, text, bar codes, two-dimensional code, date,batch number, serial number,etc |
Graphic format supported | bmp, png, ai, dxf, dst, plt |
Working voltage | Ac 220V±10%.50HZ.5Amp or Ac 110V±10%.50HZ.10Amp |
Laser Galvanometer dimension | 512*80*80 mm |
Power box dimension | 410*282*193 mm |
Net weight | 20 kg |
Standard accessories | Cable connection length 1.7m, footswitch, |
1.Q:What is fiber metal laser marking machine Package and delivery:
A:5-7 working days after receiving the payment.
There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking, solid export wooden case.
2.Q:What is the fiber metal laser marking machine Guarantee and after-sales service:
A:One year for laser source, two years for all other parts.
24 hours technical support by email or calling.
Free training for installation and operation.
3.Q:How to install and use this laser marking machine?
A:The machine is already installed before shipping. We have very detailed English manual for laser system and laser marking software, nearly all customers can learn by themselves very easily. We will also guide you if you have any doubts.
1.Q:What is fiber metal laser marking machine Package and delivery:
A:5-7 working days after receiving the payment.
There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking, solid export wooden case.
2.Q:What is the fiber metal laser marking machine Guarantee and after-sales service:
A:One year for laser source, two years for all other parts.
24 hours technical support by email or calling.
Free training for installation and operation.
3.Q:How to install and use this laser marking machine?
A:The machine is already installed before shipping. We have very detailed English manual for laser system and laser marking software, nearly all customers can learn by themselves very easily. We will also guide you if you have any doubts.
Application:
1).Materials:
Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Application:
1).Materials:
Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Industry:Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
