CF200
Chengfeng

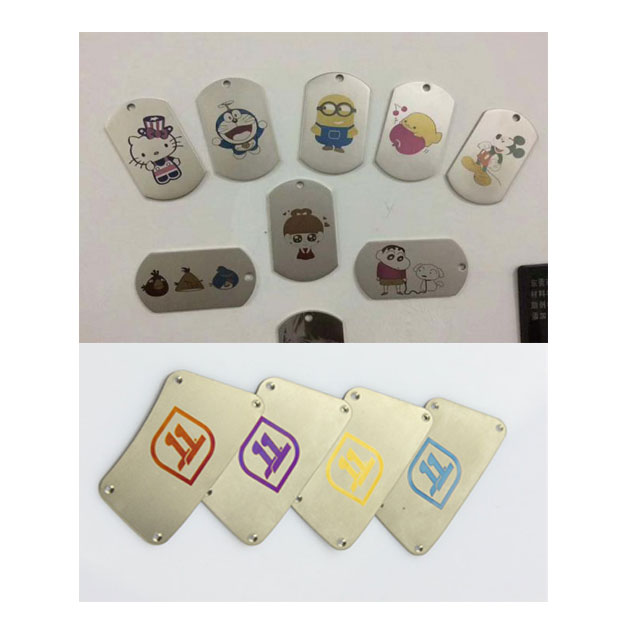

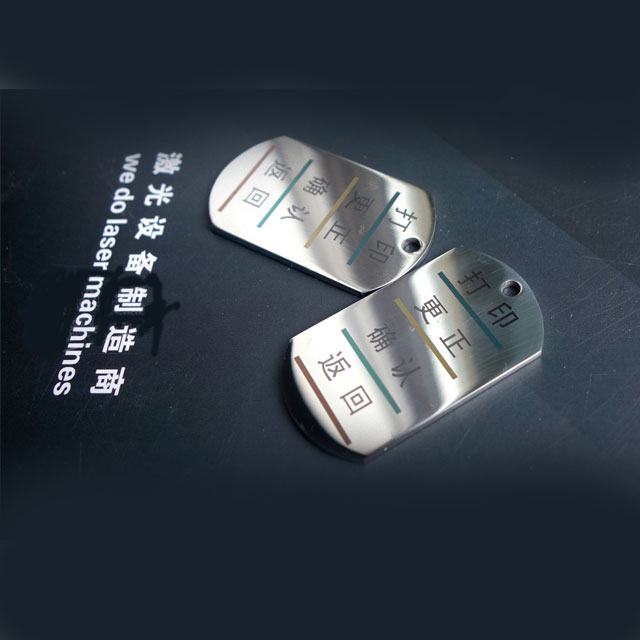

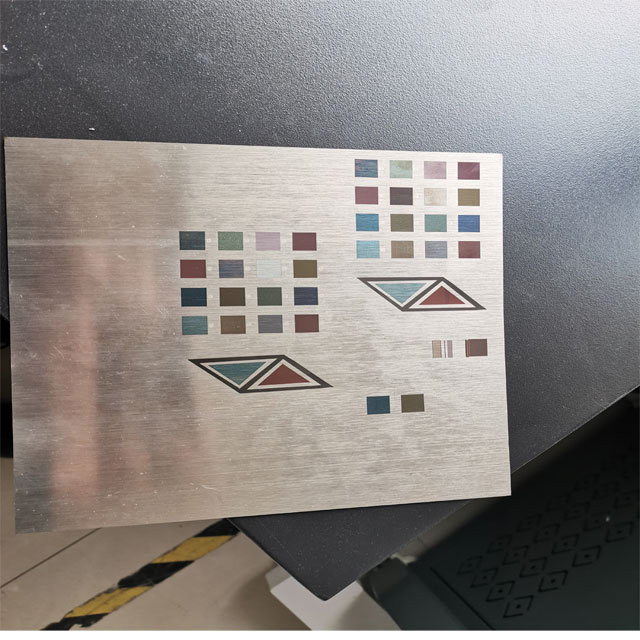

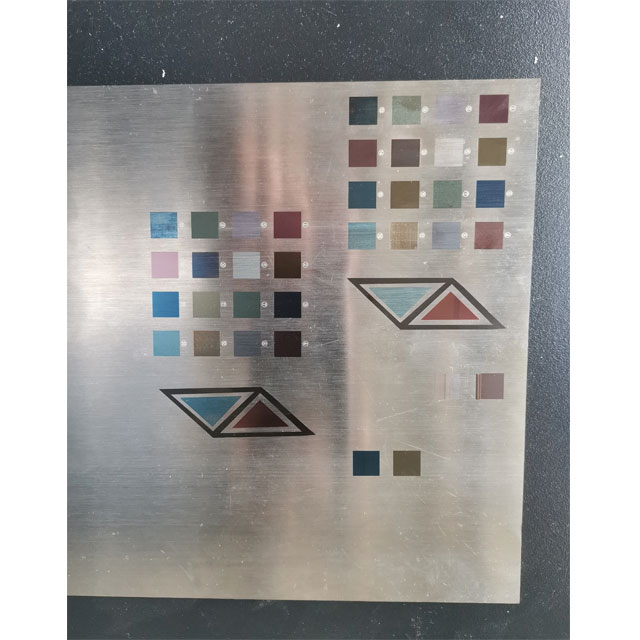

1. The Color Mopa Fiber Laser Marking Machine for Stainless Steel special function is that it could laser mark black color on the Anodized aluminum and mark color on stainless steel, Common fiber laser marking system only can mark gray color on anodized aluminum.
2.There is another special function of Mopa fiber marking system is that it could adjust the pulse width of the laser, that common fiber laser system could not do.
3.Mopa fiber marking system is nearly the same as common fiber laser marking system. If you don't have special needs for marking black color on anodized aluminum, it is best to choose a common fiber laser marking engraving machine system, as the cost of Mopa fiber laser marker is slightly higher.
4. There are 20w, 30w, 50w.
1. The Color Mopa Fiber Laser Marking Machine for Stainless Steel special function is that it could laser mark black color on the Anodized aluminum and mark color on stainless steel, Common fiber laser marking system only can mark gray color on anodized aluminum.
2.There is another special function of Mopa fiber marking system is that it could adjust the pulse width of the laser, that common fiber laser system could not do.
3.Mopa fiber marking system is nearly the same as common fiber laser marking system. If you don't have special needs for marking black color on anodized aluminum, it is best to choose a common fiber laser marking engraving machine system, as the cost of Mopa fiber laser marker is slightly higher.
4. There are 20w, 30w, 50w.
Fiber laser marking machine technical parameters | |

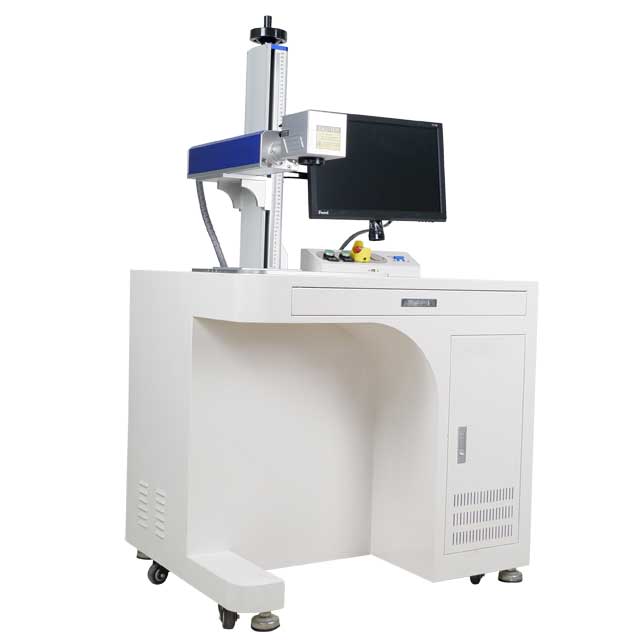

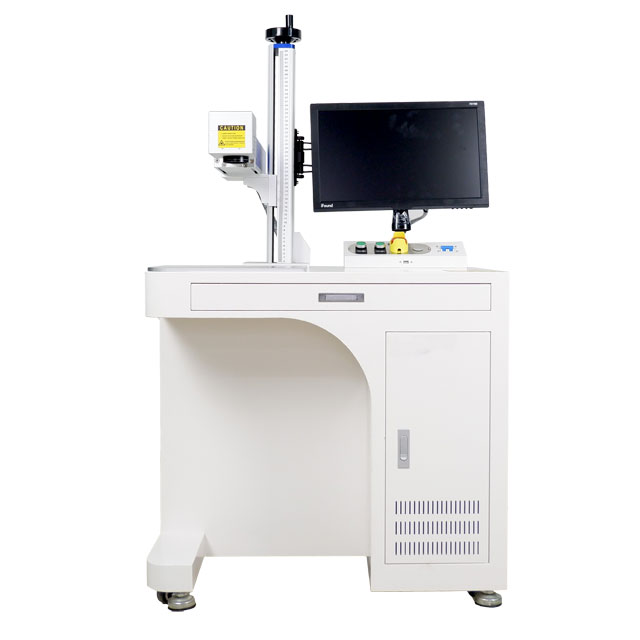

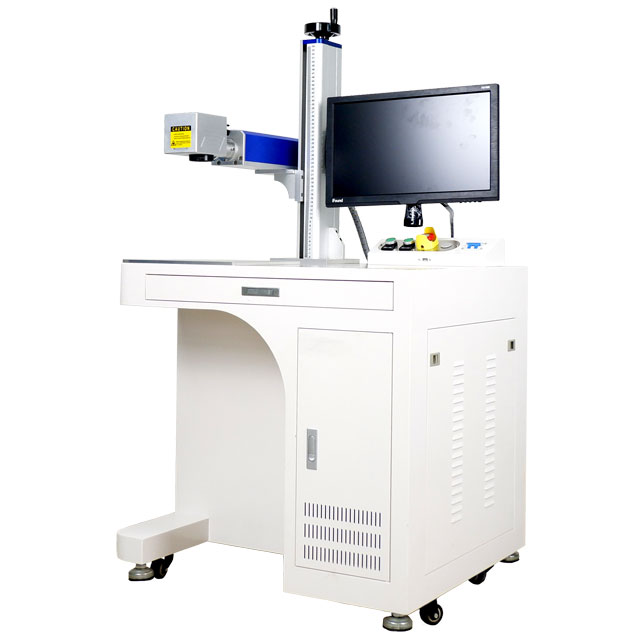

Laser Type | CF200 Mopa color fiber laser marking machine |
Laser Power | 20W 30W 50W 70W 100W |
Laser Wavelength | 1064nm |
Marking Area | 75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm |
Marking Depth | ≤1.2mm |
Marking Speed | 10000mm/s |
Minimum Line Width | 0.012mm |
Minimum Character | 0.15mm |
Repeated Precision | ±0.003mm |
Life-span of Fiber Laser Module | 100 000hours |
Beam Quality | M2 <1.5 |
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
Cooling Mode | Air cooling--Built-in |
Temperature of Operation Environment | 15℃~35℃ |
Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
Power Requirement | <400W |
Communication Interface | USB |
Machine Dimension/after package | 920*830*1160mm |
Net Weight/gross weight | 120/170kg |
Optional | Rotary Device, Moving Table, other customized Automation |
