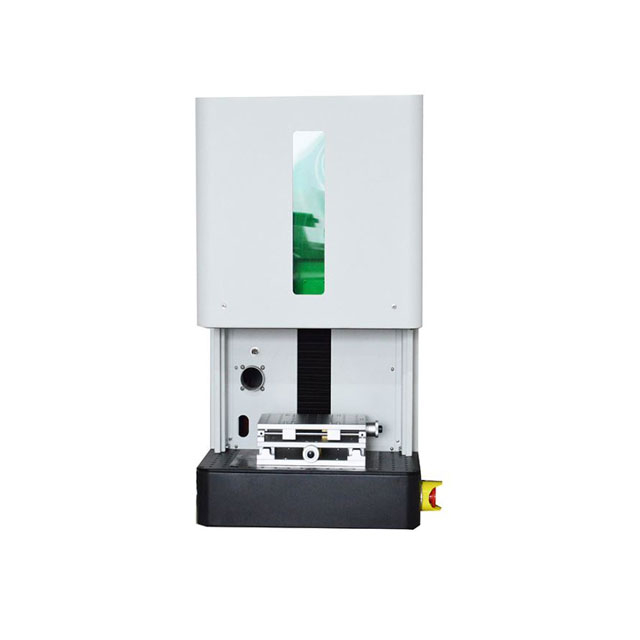

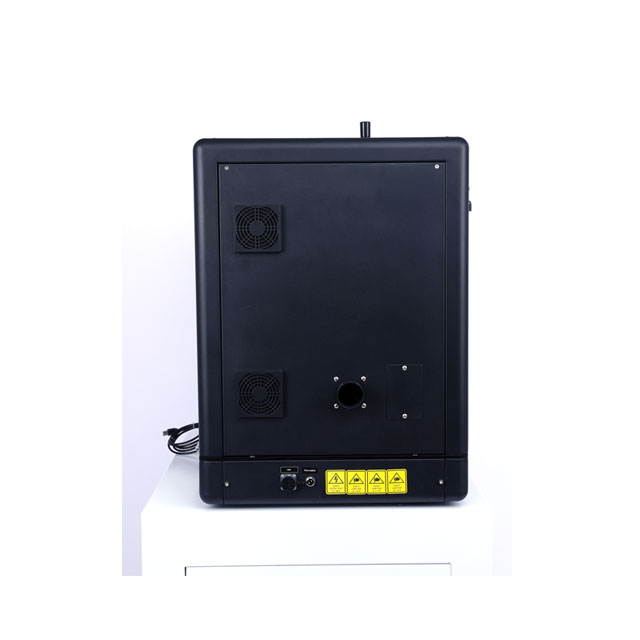

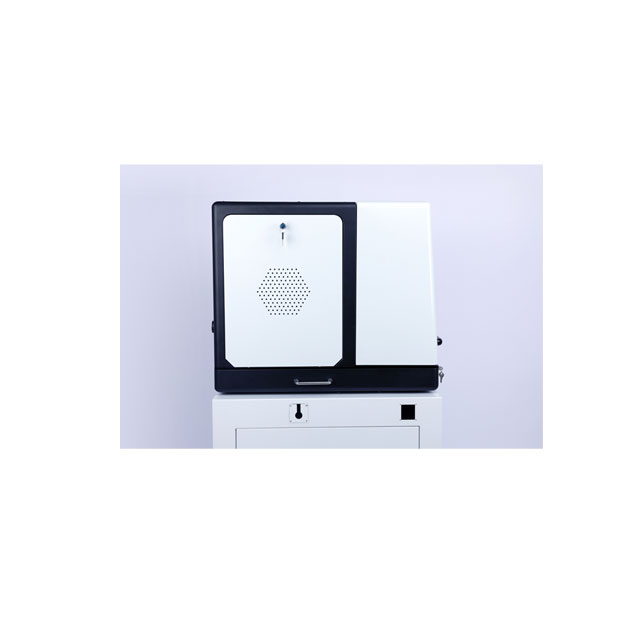

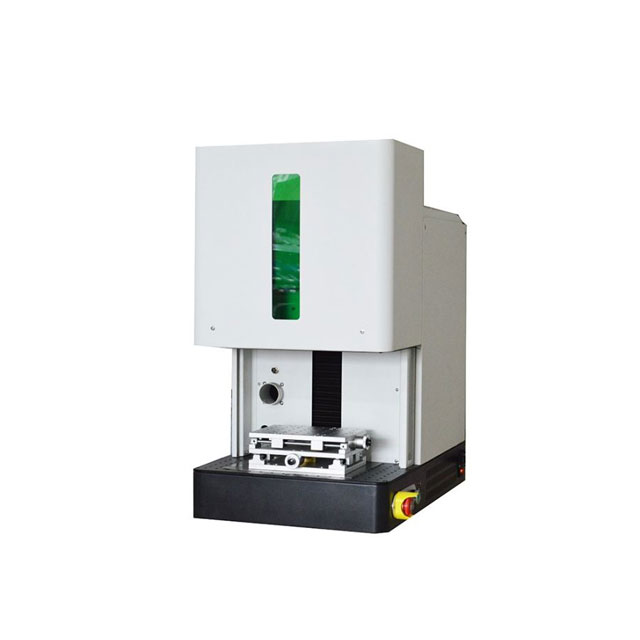

CF200FE
Chengfeng
Easy operation, even the new buyer can learn it well in one or two hours with our manual.
Small size and easy to move.
Widely used for marking metal and nonmetal materials.
High speed (7000mm/s), high precision (0.001mm).
Air cooling, no requirement to temperature.
Long lifetime (100000 working hours), no consumable.
Easy operation, even the new buyer can learn it well in one or two hours with our manual.
Small size and easy to move.
Widely used for marking metal and nonmetal materials.
High speed (7000mm/s), high precision (0.001mm).
Air cooling, no requirement to temperature.
Long lifetime (100000 working hours), no consumable.
Laser power | 10W 20W 30W 50W/100w |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF ect |
Beam quality | m2 <2 |
Power stability | (8h) <± 1% rms |
Pulse repetition frequency | 20KHZ ---- 100KHZ |
Power consumed | <800W |
Minimum line width | 50μm |
Minimum character | 0.3mm |
Laser Wavelength | 1064nm |
Galvanometer Size | 110 * 110mm (optional) |
Whole machine power | 500w |
Cooling way | Air cooling |
Operating voltage | 110/220V ± 10% /,50/60HZ |
Ambient operating temperature | 0 ° C - 40 ° C |
Weight | 50KG |
Dimensions | 600H * 200W * 700L (mm) |
Packing | plywood wooden packaging |
Laser power | 10W 20W 30W 50W/100w |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF ect |
Beam quality | m2 <2 |
Power stability | (8h) <± 1% rms |
Pulse repetition frequency | 20KHZ ---- 100KHZ |
Power consumed | <800W |
Minimum line width | 50μm |
Minimum character | 0.3mm |
Laser Wavelength | 1064nm |
Galvanometer Size | 110 * 110mm (optional) |
Whole machine power | 500w |
Cooling way | Air cooling |
Operating voltage | 110/220V ± 10% /,50/60HZ |
Ambient operating temperature | 0 ° C - 40 ° C |
Weight | 50KG |
Dimensions | 600H * 200W * 700L (mm) |
Packing | plywood wooden packaging |
The warranty for whole machine is effective 1 years from the ExFactory Date.
We will send you the spare parts free during warranty when there is fault.
We have experience engineer, could teach you how to use and maintenance.
Our team is 24 hours on line.
The warranty for whole machine is effective 1 years from the ExFactory Date.
We will send you the spare parts free during warranty when there is fault.
We have experience engineer, could teach you how to use and maintenance.
Our team is 24 hours on line.
