CFW1000
Chengfeng

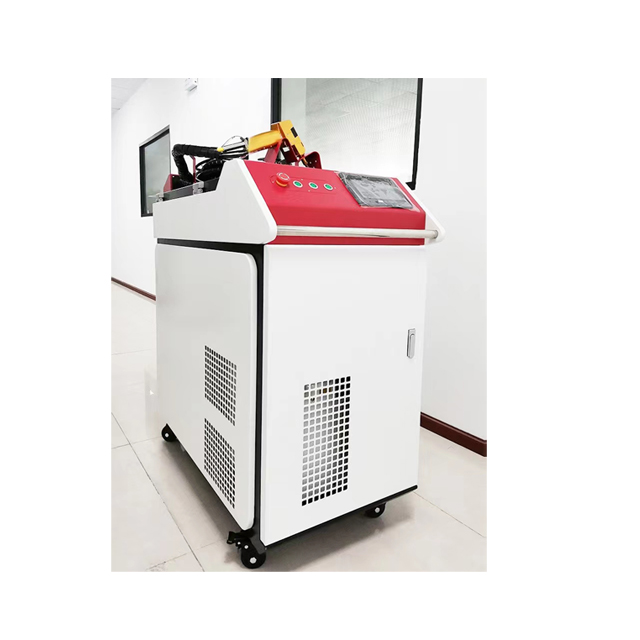

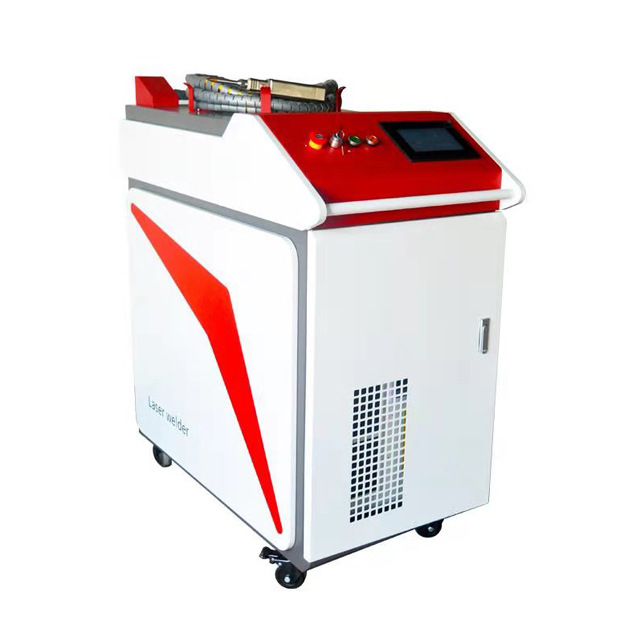

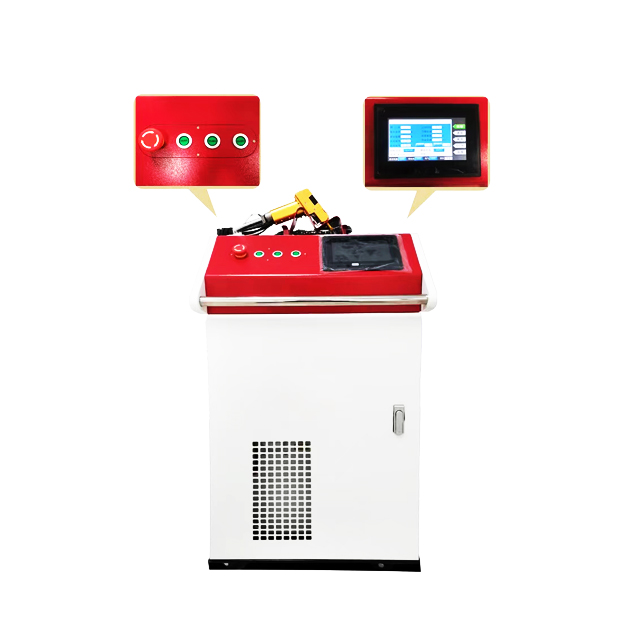

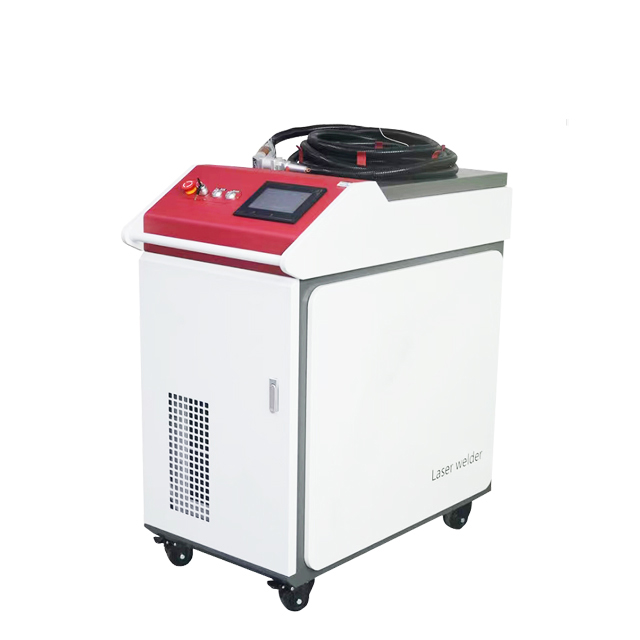

Fiber Laser Welding Machine for Metal Welding
Model：CF-W1000/1500/2000
Laser type：Fiber laser, 1080nm
Laser power：JPT1000W /1500w/2000w (or other brand)
Cable length：5 meter (10 meter is optional)
Welding speed：0-120mm/sec
Welding thickness：0.5-3mm
Cooling method：Water cooling
Gas assist ：Nitrogen
Visual positioning：Red dot
Machine dimension：104*61*122cm
Machine weight：Net 300kgs
Working voltage：220V 50HZ/60HZ
Packing size ：129*109*142cm
Machine main configuation:
1.WSX ND19 welding laser head/Qilin welding head
2.JPT fiber laser generator, China famous brand.
3. Industrial Water chiller.Enclosed water chiller.
It saves a lot of the machine's dimension. It is constant temperature industrial type.
4. WSX control system
A variety of protection measures are added to the control signal part to avoid the potential safety hazards to users caused by control failures which may arise from mis-operation, wiring errors or current interference.
5. Gas valve
It controls gas blowing, gas blows only during welding.
6. Small space occupation
Fiber laser source, controller and water chiller all in one machine, saves space and is easy to move.
Machine Application
Fiber laser welding machine is widely used in the industries such as advertising, hardware products, auto parts, craft gift etc.
