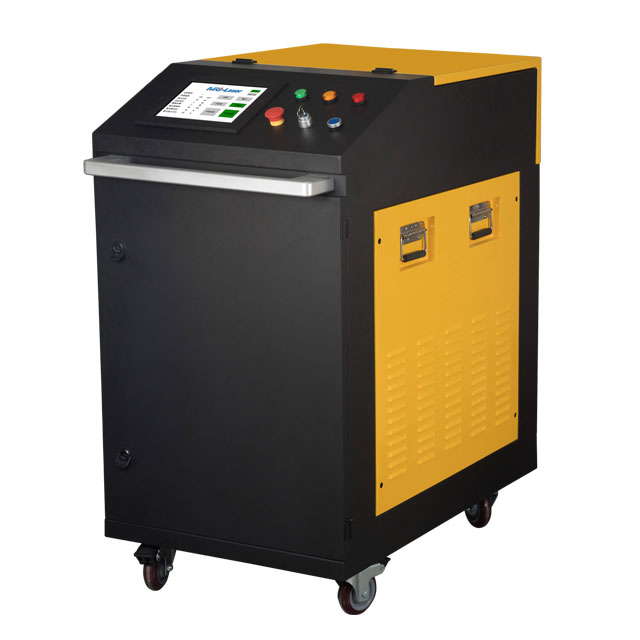

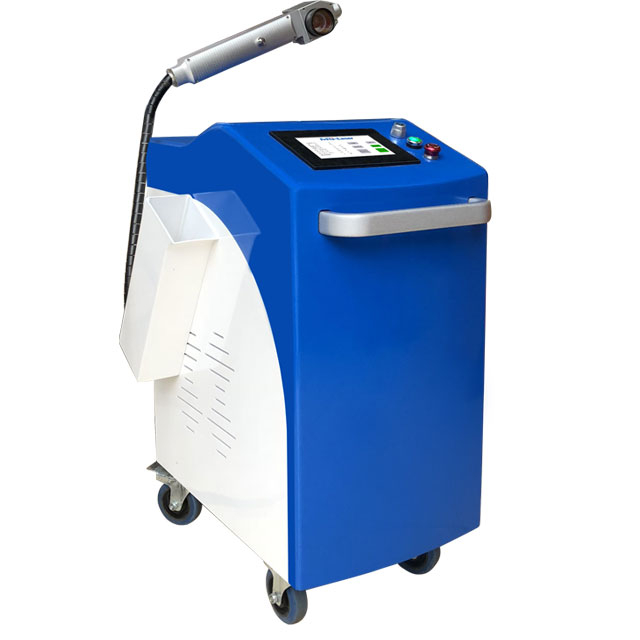

CF100
Chengfeng
· CF100A Laser cleaning machine is a high-tech and latest product of surface cleaning, it is easy to install, operate and automated;
· The whole machine is simple to operate, connect the power, then it can start to clean without chemical reagent, medium and water;
· With auto focus, spherical surface cleaning, high cleanliness, can remove the resin, oil contamination, stains, dirt, rust, coating, plating and paint on the surface of different shape metal objects, and the stone caving surface attachments and rubber mold surface residue;
· Mainly used in mold processing, automobile manufacturing, shipbuilding industry, food processing, sewage treatment, rubber tires and petrochemical industries.
· CF100A Laser cleaning machine is a high-tech and latest product of surface cleaning, it is easy to install, operate and automated;
· The whole machine is simple to operate, connect the power, then it can start to clean without chemical reagent, medium and water;
· With auto focus, spherical surface cleaning, high cleanliness, can remove the resin, oil contamination, stains, dirt, rust, coating, plating and paint on the surface of different shape metal objects, and the stone caving surface attachments and rubber mold surface residue;
· Mainly used in mold processing, automobile manufacturing, shipbuilding industry, food processing, sewage treatment, rubber tires and petrochemical industries.
Model | CF100 | CF200 |
Laser power | 100W | 200W |
Laser Wavelength | Fiber Laser 1064nm | |
Pulse Energy | 1-5mJ | 1.5mJ |
Focal Length | F= 160mm/ F=254mm(Customizable) | |
Clean Head Weight | 2.5+0.1kg | |
Touch Screen | 7 inch | |
Cable Length | 3.0m(Customizable, up to20m) | |
Scan Length | 1-100mm(Customizable) | |
Scan Width | 1-20mm(Customizable) | |
Working Temperature | 0℃- 50℃ | |
Storage Temperature | -10℃- 60℃ | |
Operating Humidity | 10% -90% | |
Machine Weight | 48±0.5kg | |
Machine Size | 670*436* 865mm | |
Cooling Method | Air Cooling | |
Power Consumption | 1 000W | 1200W |
Input Power | Single-phase 220VAC t 10%, 50-60Hz | |
Optional Accessory | Hand-held/ Automated |
Model | CF100 | CF200 |
Laser power | 100W | 200W |
Laser Wavelength | Fiber Laser 1064nm | |
Pulse Energy | 1-5mJ | 1.5mJ |
Focal Length | F= 160mm/ F=254mm(Customizable) | |
Clean Head Weight | 2.5+0.1kg | |
Touch Screen | 7 inch | |
Cable Length | 3.0m(Customizable, up to20m) | |
Scan Length | 1-100mm(Customizable) | |
Scan Width | 1-20mm(Customizable) | |
Working Temperature | 0℃- 50℃ | |
Storage Temperature | -10℃- 60℃ | |
Operating Humidity | 10% -90% | |
Machine Weight | 48±0.5kg | |
Machine Size | 670*436* 865mm | |
Cooling Method | Air Cooling | |
Power Consumption | 1 000W | 1200W |
Input Power | Single-phase 220VAC t 10%, 50-60Hz | |
Optional Accessory | Hand-held/ Automated |
High-Tech non-contact cleaning
No need any chemical liquid, no consumables, safety and environmental protection.
Customizable personalized cleaning head
Simple structure, light weight, ergonomic design and easy to operate;
Imported high-speed scanning motors from USA, small size, high precision, good stability.
Professional laser cleaning optical design
High damage threshold of scanning mirror and F-theta lens;
Continuously long-time working more than 10 hours.
Unique self-developed cleaning software control system
Clear and concise control interface, easy to operate, all parameters can be set and adjusted base on user's demands for high performance controlling of laser and clean head;
More uniform cleaning surface, no any damage to substrate of components, realized selective cleaning of precise location and accurate size.
High cleaning efficiency and saving time
Simple structure, stable performance, maintenance-free;
Automated cleaning by hand-held or work with manipulator.
High-Tech non-contact cleaning
No need any chemical liquid, no consumables, safety and environmental protection.
Customizable personalized cleaning head
Simple structure, light weight, ergonomic design and easy to operate;
Imported high-speed scanning motors from USA, small size, high precision, good stability.
Professional laser cleaning optical design
High damage threshold of scanning mirror and F-theta lens;
Continuously long-time working more than 10 hours.
Unique self-developed cleaning software control system
Clear and concise control interface, easy to operate, all parameters can be set and adjusted base on user's demands for high performance controlling of laser and clean head;
More uniform cleaning surface, no any damage to substrate of components, realized selective cleaning of precise location and accurate size.
High cleaning efficiency and saving time
Simple structure, stable performance, maintenance-free;
Automated cleaning by hand-held or work with manipulator.

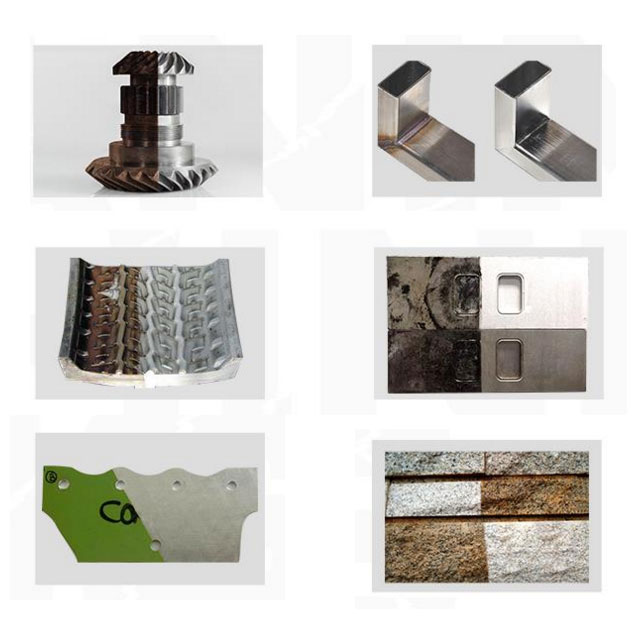

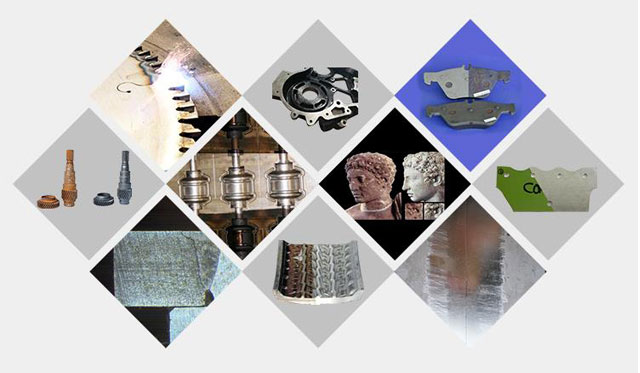

Precise de-coating of small areas
Natural stone cleaning
Rust/oxide removal
Oil & grease removal/Cleaning oil deposits
Paint & plating removal
Pre-tre adhesive bonding
In-line baking plate cleaning
Print rollers cleaning
Weld seam pre-treatment/Removal preparation welding layers
Industrial, military & shipyard - production intensive de-coating
Nuclear de-contamination
Precise de-coating of small areas
Natural stone cleaning
Rust/oxide removal
Oil & grease removal/Cleaning oil deposits
Paint & plating removal
Pre-tre adhesive bonding
In-line baking plate cleaning
Print rollers cleaning
Weld seam pre-treatment/Removal preparation welding layers
Industrial, military & shipyard - production intensive de-coating
Nuclear de-contamination
