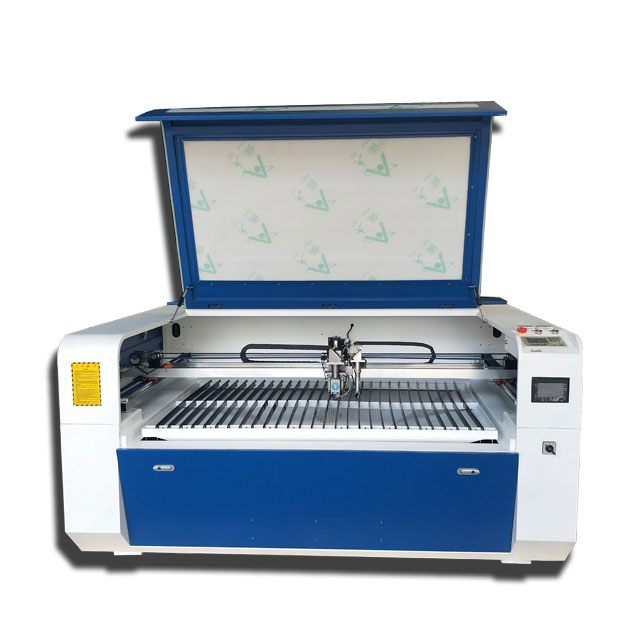

CO2 Mixer Laser Engraving Cutting Machine for Metal And Nonmetal with Two Cutting Heads

CO2 Mixer Laser Engraving Cutting Machine for Metal And Nonmetal with Two Cutting Heads
1.With two cutting head.
2.One head is for metal cutting and one head is for nonmetal engraving.
3.Multi function.
Size:
Power:
Glass tube brand:
Availability:
Quantity:
  • CF1390M

  • Chengfeng

Product Features

  • Outstanding cutting cross section, high precision, good stability, satisfying the process demands of precision parts.

  • Dynamic performance is stable, able to work for long time.

  • Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.

  • Laser cutting head with auto focusing system.

  • Laser cutting head automatically adjust its height along the metal sheet surface, ensuring the focal length keeps the same all the time.

  • Smooth cutting edge, no need polishing or other further handling.

  • Flat and wavy steel sheets can be cut with this machine.



Technical Parameter

Machine model

CF1390M CF1490M CF1325M

Laser type

Sealed CO2 laser tube, wavelenght:10:64μm

Laser power

150w/180w/220w/280w/300w

Cooling mode

Pure circulating water cooling

Laser power control

0-100% software control

Control system

DSP offline control system

Max. engraving speed

0-60000mm/min

Max cutting speed

0-30000mm/min

Repetition accuracy

≤±0.01mm

Min. Letter

Chinese:1.5mm, English:1mm

Table size

1300mm*900mm/1400mm*900mm/1300mm*2500mm

Working voltage

110V/220V.50-60HZ

Working conditions

temperature:0-45,humidity:5%-95%

File formats

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las,*.doc

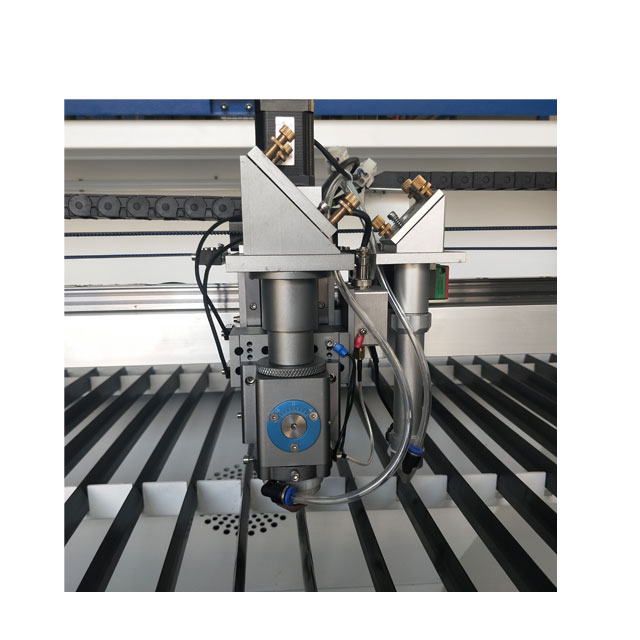

  • Universal laser cutting machine--Double laser head cutting, Double efficiency

  • Allow work only with one laser cutting head,flexible for cutting

    laser cutting machine for metal and nonmetal

Double head CO2 Laser Cutting Machine

Application

Material

Metal such as stainless steel,carbon steel,Nonmetallic material like Wood, paper, epoxy resin, acrylic, plastic, rubber and bamboo, etc.

Sample:

Double head CO2 Laser Cutting Machine (6)Double head CO2 Laser Cutting Machine (7)Double head CO2 Laser Cutting Machine (5)Double head CO2 Laser Cutting Machine (8)laser cutting machine
