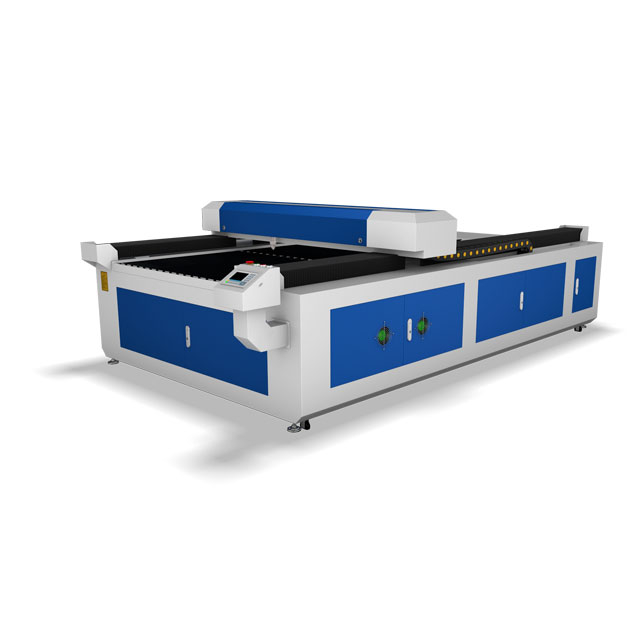

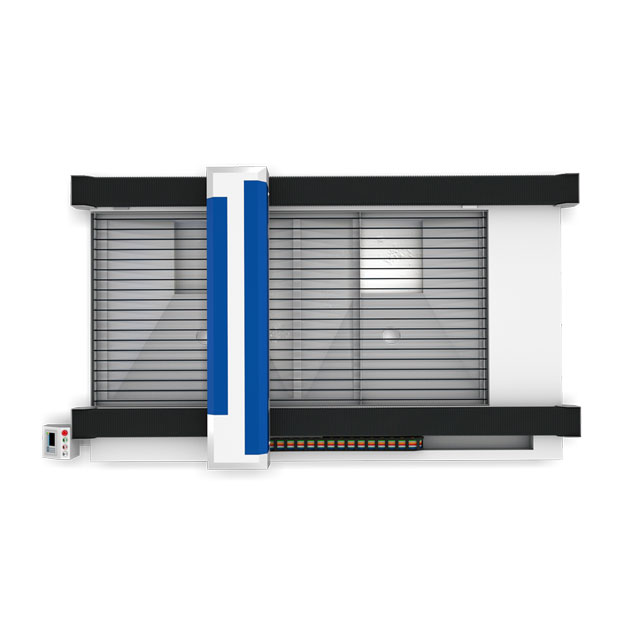

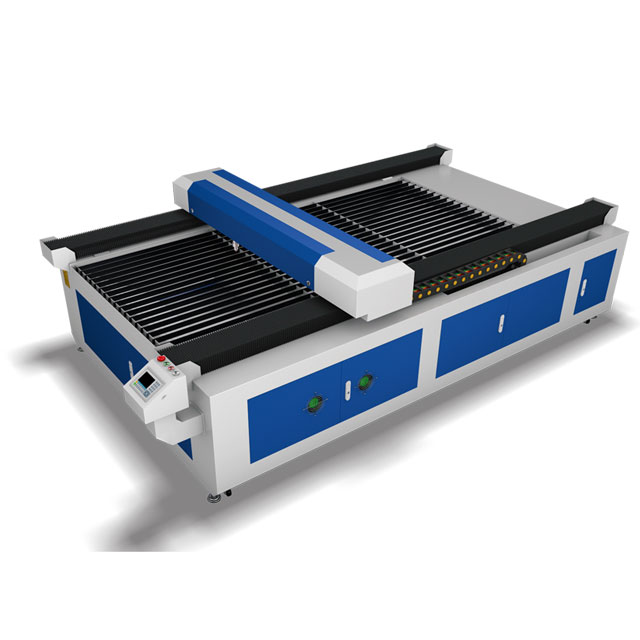

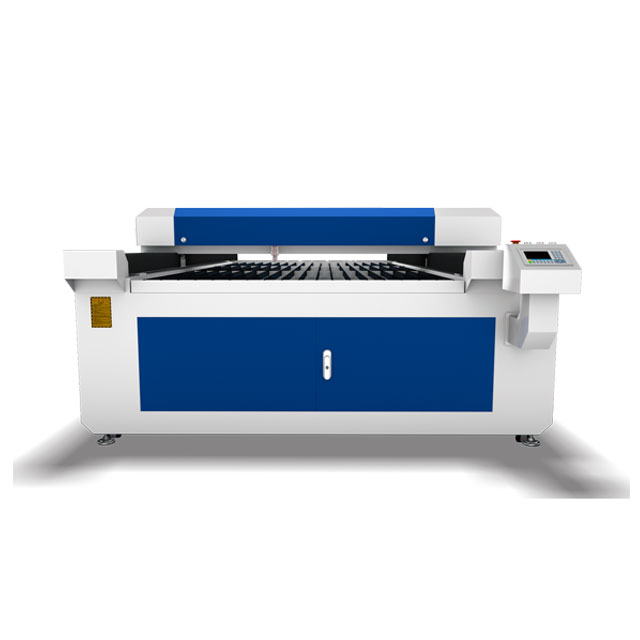

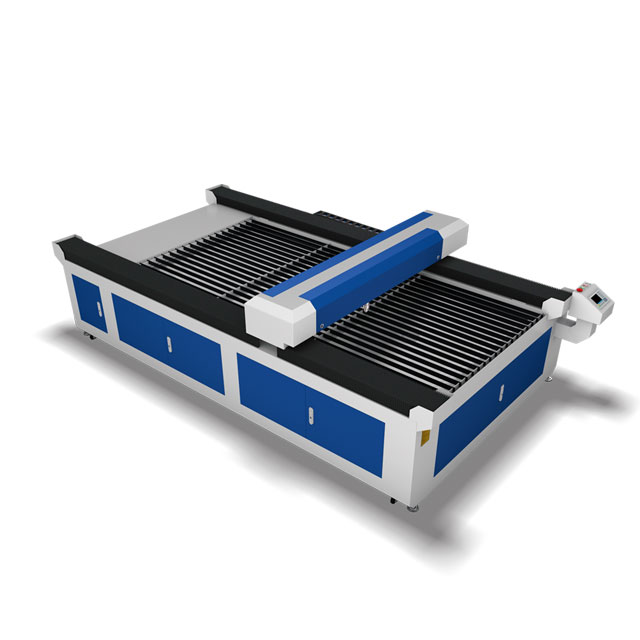

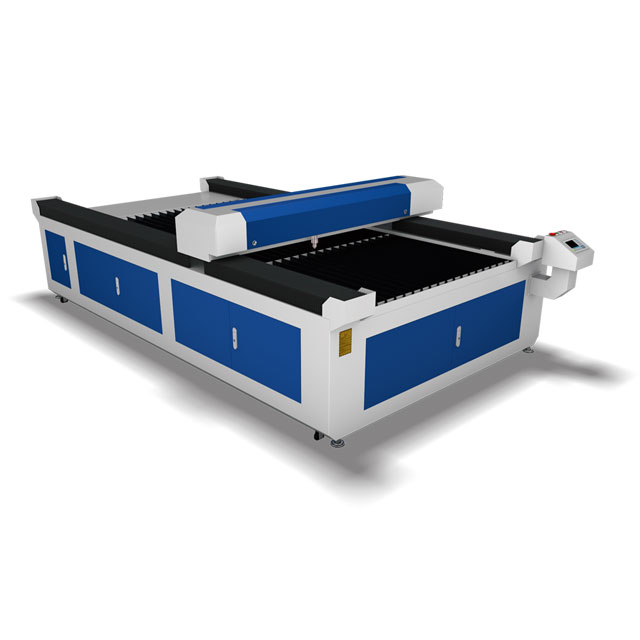

1325 Co2 Laser Engraving Cutting Machine for Metal And Non Metal

1325 co2 laser engraving cutting machine for metal cutting and non metal cutting.
Power:
Working area:
Availability:
Quantity:
  • CF1325

  • chengfeng

1325 Co2  Laser Engraving Cutting Machine for Metal And Non Metal

Machine Features

1.Outstanding cutting cross section, high precision, good stability. Adopts precision gear rack transmission

and advanced DSP controlling system, satisfying the process demands of precision parts. Dynamic performance is

stable, able to work continuously for long time.

2.Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.

3.Laser cutting head with auto focusing system. Laser cutting head automatically adjust its height along the metal

sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other

further handling. Flat and wavy steel sheets can be cut with this machine.

4.1325 big size laser CO2 cutting bed, able to cut metal and nonmetal such as stainless steel, carbon steel, acrylic, wood, MDF, plywood, glass and many other non-metals. Widely used in craft gifts, advertising, signs, furniture, clothes, decoration and other industries. Fast working speed, high precision.


Machine models

CF1390

CF1325

Working area

1300mm*900mm

1300mm*2500mm

Laser type

Sealed CO2 glass laser tube, wavelength: 10.64μm

laser power

150W/180W/280W/300W

Cooling mode

Pure circulating water cooling

Control system

DSP offline control system, laser powersoftware 0-100% adjustable

Max. engraving speed

0-60000mm/min

Max. cutting speed

0-30000mm/min

Repetition accuracy

≤±0.01mm

Min. letter

Chinese: 2.0*2.0mm; English: 1.0*1.0mm

Working voltage

110V/220V,50Hz~60Hz

Working condition

Temperature: 0-45, humidity: 5%-95% (No condensation)

File formats

*.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, support AutoCAD,   CoreDraw software

Size

3.35*2.01*1.13



3.85*2.07*1.42


Applicable Materials

Stainless steel, carbon steel, galvanized steel, acrylic, plywood, MDF and other materials

Application Industries

Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood),arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
