YYW Dynamic Balancing Machines for Motor Fan

Share to:

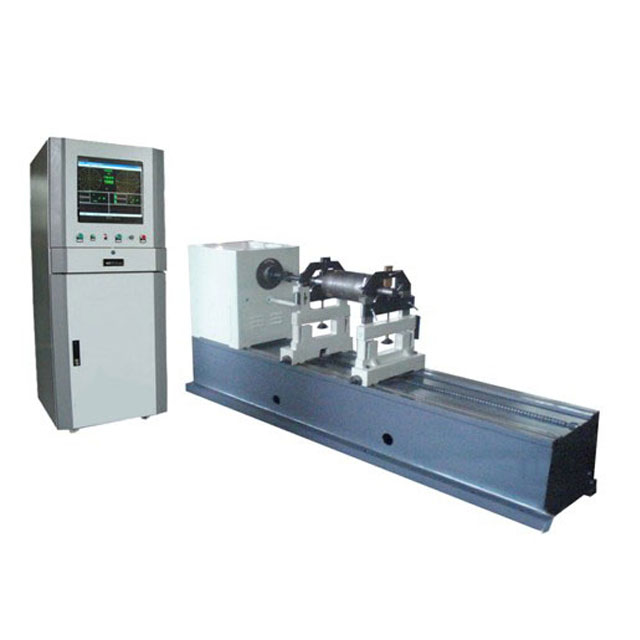

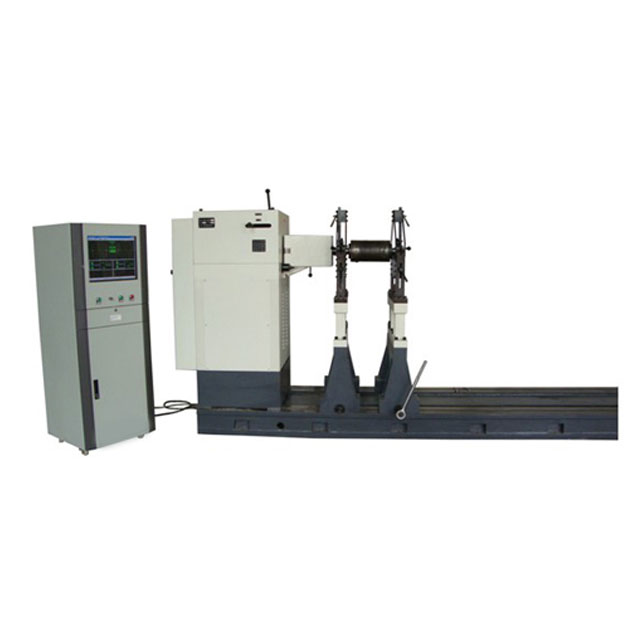

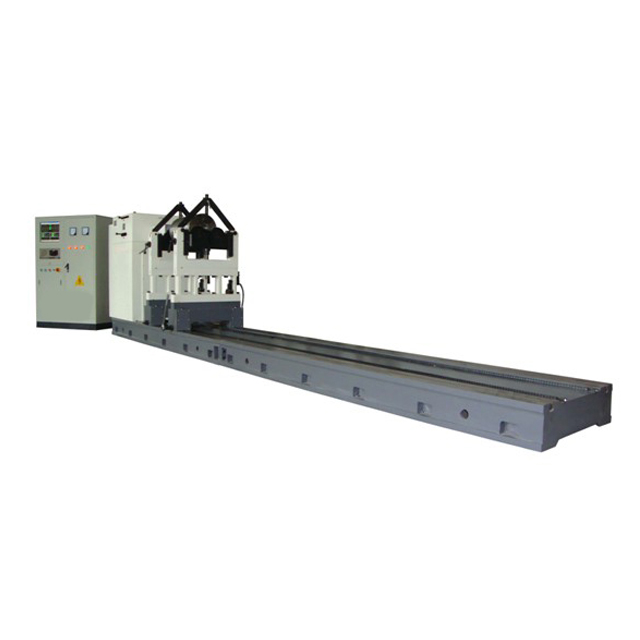

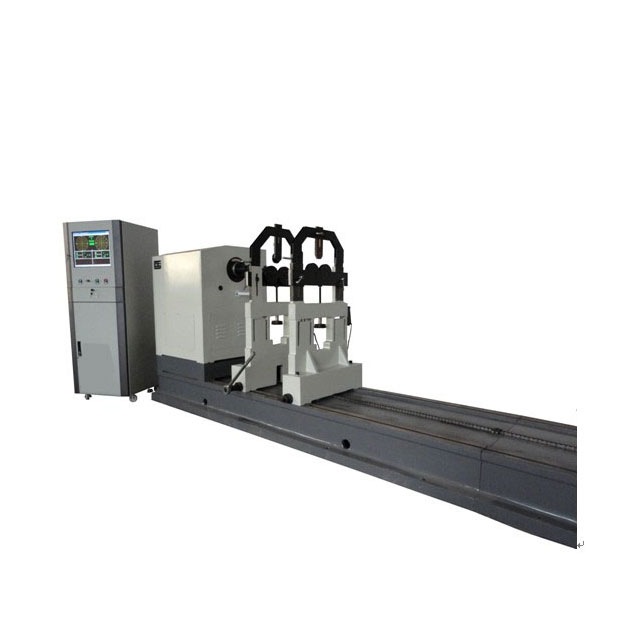

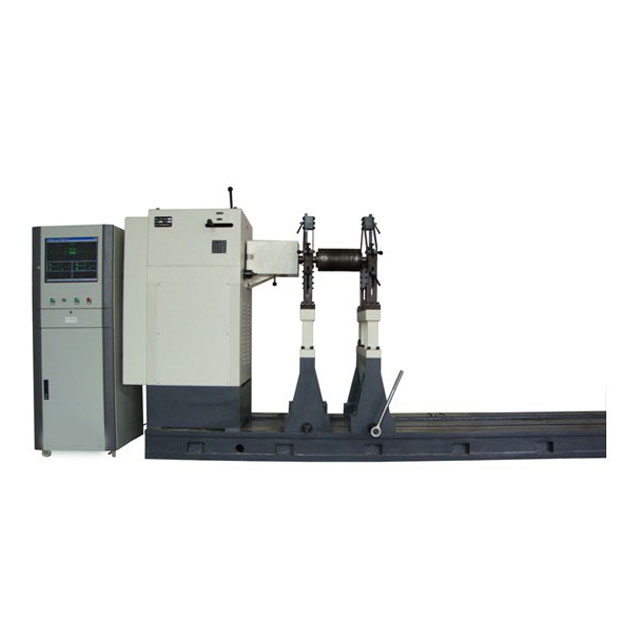

YYW Dynamic Balancing Machines for Motor Fan

It is universal joint driven dynamic balancing machine.

Workpiece weight :	160KG 300Kg 500KG 1000KG 3000KG 5000KG 10000KG 20000KG
Availability:

Quantity:



Inquire Add to Basket

Model:
YYW universal joint driven dynamic balancing machine
Brand:
Chengfeng

YYW universal joint drive balancing machine

Widely apply for industries like motor, blower, fans, diesel motor, turbocharger,

armature, crank shaft, rotors of paper machinery and textile machinery, farm machine etc.

Horizontal hard bearing dynamic balancing machine serials

Wheel bearing

Motor and Inverter for speed regulation

Industrial computer to process data

Colored screen display unbalance value, phase angle, and practical rotation speed

Overall cast base, better stability

Balance test as single side, double side, multi side

Apply for shaft, plate, and extended focus rotor

High accuracy, direct, dependable quality, convenient maintenance

Software has two calibration function like usual piece and standard rotor

Parameter input, overview, test, data save, operate and menu

MODEL	Max. mass of workpiece (kg)	Max.diameter of workpiece （mm）	Distance between two bearing suppo （mm）	Max.rotor Diameter （mm）	Balanncing speed min （r/mm）	min. achievableresidualun balance(g.mm/kg):	unbvalance reduction ratio(%):	Drive power (kw)
YYW-160	5-160	φ950	60-1420	φ10-180	325/650/1300	≤1	≥90	0.85/1.5
YYW-300(A)	10-300	φ1200	60-1700	φ20-180	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	2..2/3.3 A5.5
YYW-500(A)	20-500	φ1500	70-1600	φ15-240	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	3/4.5 A7.5
YYW-1000(A)	20-1000	φ1500	70-2300	φ15-240	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	5/7.5 A7.5
YYW-1600A	30-1600	φ1800	100-2500	φ15-240	300-2500 Neutral speed regulating	≤1	≥90	11
YYW-3000S	50-3000	φ2000	300-3000	φ40-300	160-1500 Neutral speed regulating	≤1	≥90	7.5
YYW-3000A	100-3000	φ2400	300-3000	φ40-300	180-1500 Neutral speed regulating	≤1	≥90	11
YYW-5000A	300-5000	φ2400／ 2000	340-2960	φ40-180 180-300	180-1500 Neutral speed regulating	≤1	≥90	18.5
YYW-10000A	300-10000	φ2400／ 3200	240-5100	φ50-200 200-400	200-1200 Neutral speed regulating	≤1	≥90	45
YYW-20000A	500-20000	φ2400／ 3200	300-5100	φ50-200 200-400	200-1200 Neutral speed regulating	≤1	≥90	55

MODEL	Max. mass of workpiece (kg)	Max.diameter of workpiece （mm）	Distance between two bearing suppo （mm）	Max.rotor Diameter （mm）	Balanncing speed min （r/mm）	min. achievableresidualun balance(g.mm/kg):	unbvalance reduction ratio(%):	Drive power (kw)
YYW-160	5-160	φ950	60-1420	φ10-180	325/650/1300	≤1	≥90	0.85/1.5
YYW-300(A)	10-300	φ1200	60-1700	φ20-180	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	2..2/3.3 A5.5
YYW-500(A)	20-500	φ1500	70-1600	φ15-240	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	3/4.5 A7.5
YYW-1000(A)	20-1000	φ1500	70-2300	φ15-240	325/650/1300 (A300-2500 Neutral speed regulating)	≤1	≥90	5/7.5 A7.5
YYW-1600A	30-1600	φ1800	100-2500	φ15-240	300-2500 Neutral speed regulating	≤1	≥90	11
YYW-3000S	50-3000	φ2000	300-3000	φ40-300	160-1500 Neutral speed regulating	≤1	≥90	7.5
YYW-3000A	100-3000	φ2400	300-3000	φ40-300	180-1500 Neutral speed regulating	≤1	≥90	11
YYW-5000A	300-5000	φ2400／ 2000	340-2960	φ40-180 180-300	180-1500 Neutral speed regulating	≤1	≥90	18.5
YYW-10000A	300-10000	φ2400／ 3200	240-5100	φ50-200 200-400	200-1200 Neutral speed regulating	≤1	≥90	45
YYW-20000A	500-20000	φ2400／ 3200	300-5100	φ50-200 200-400	200-1200 Neutral speed regulating	≤1	≥90	55
