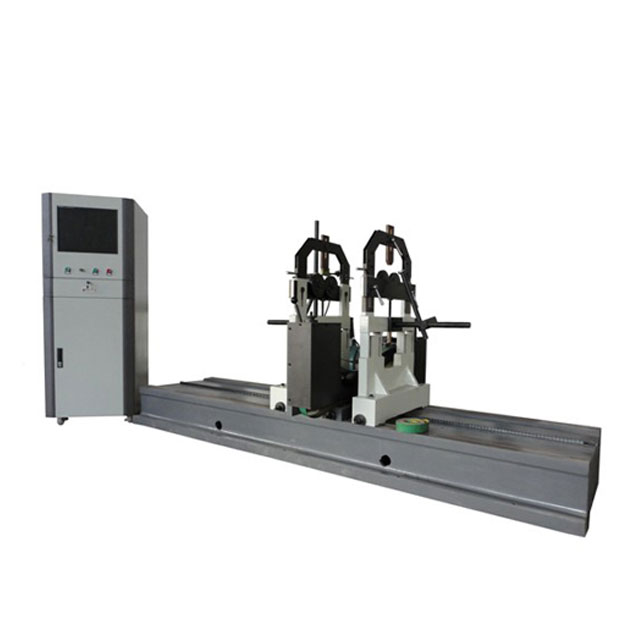

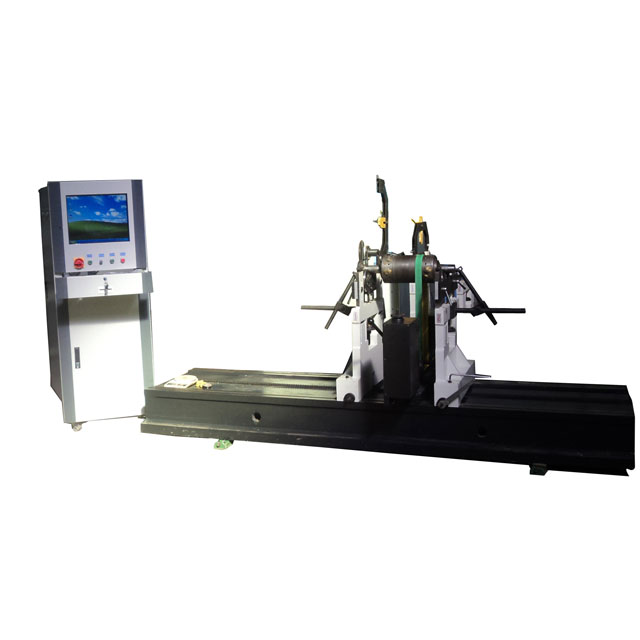

YYQ-1000 High Speed Dynamic Balancing Machine

1000kg workpiece balancing machine
Availability:
Quantity:
  • YYQ-1000

  • Chengfeng

Feather:

1,high precision

2,high quality

3,high efficiency

Optional function

1, Balance Angle automatic tracking function

2, Parking automatic positioning function

3, Vector Angle function decomposition

Range of Application

This balancing machine is designed for balancing all kinds of turbocharger rotors and other rotors such as kinds of good-sized and medium-sized turbocharger rotor,turbocharger impellers,turbocharger turbines,turbocharger compressors,motors, textile machinery, crankshaft,roller,fans,shaft according to demanding of our customers.

Design

Its specialty that there are two bearing pedestals selection and mostly satisfied variety rotors , etc .. Driven by belt,it is simple to load and unload,quick to start and with high precision and low failure rate.


Model

Max. mass of workpiece   (kg)

Max. Diameter of

workpiecemm

Distance between two   bearing supportmm

Journal Diameter

mm

Balancing speed min

r/mm

min. achievable   residual

unbalance(g.mm/kg):

unbalance reduction   ratio(%):

Drive power

(kw)

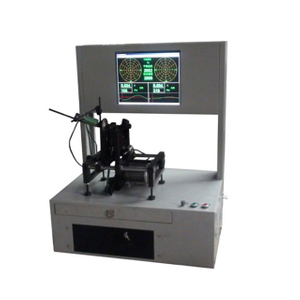

RYQ-3

0.1-3

φ350

30-450

φ4-17

400-10000

≤0.5



≥90



0.09

RYQ-10

0.3-10

φ500

30-600

φ4-17

400-10000

0.18

YYQ-5

0.1-5

φ400

50-600

Φ5-40

400-5000

0.18

YYQ-16

0.3-16

φ500

60-600

φ5-40

400-5000

0.18

YYQ-30

0.5-30

Φ800

60-800

φ8-90

300-5000

1.5

YYQ-50

1-50

φ900

60-800

φ8-90

300-5000

YYQ-100

2-100

φ900

80-1000

φ10-140

300-5000

1.5

YYQ-160

2-160

φ950

100-1400

φ10-180

300-2500

1.5

YYQ-300

5-300

φ1200

150-1500

φ20-180

300-2500

4.0

YYQ-500

10-500

φ1500

150-1500

φ20-240

180-2500

4.0

YYQ-1000

10-1000

φ1500

150-2600

φ20-240

180-2500

5.5

YYQ-1600

30-1600

φ1800

150-2600

φ20-240

180-2500

7.5

YYQ-3000

100-3000

φ2000

300-2600

φ20-120   φ120-240

180-2500

11

YYQ-5000

200-5000

      φ2000

300-3000

φ140-180,φ180-300

180-1450

15
