CF1325
Chengfeng

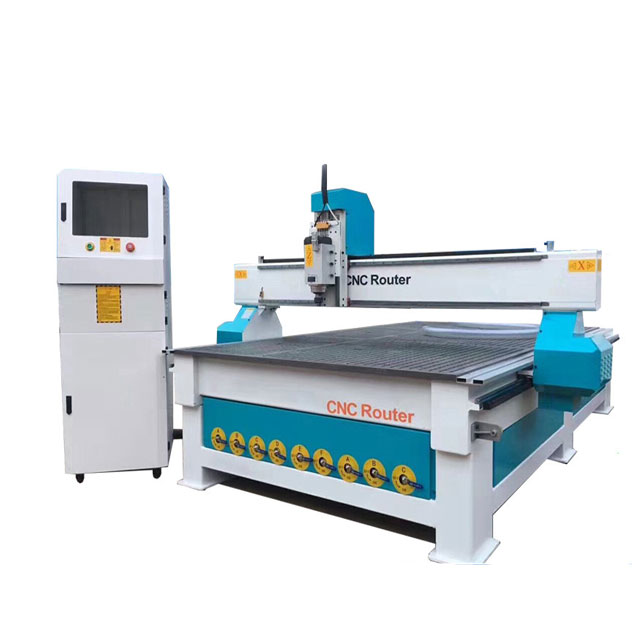

Woodworking Machine CNC Router 1325
1.Machine body design with high strength and double driving motors of Y axis, which have more reasonable design,fast processing speed, easy-operated maintenance and low fault rate.
2.Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network.
3.Imported drivers and motors have characteristics such as powerful strength, fast processing speed, stable operation and extreme low noises.
4.High power spindles have constant power, low noises and super strong cutting force, which improve working efficiency greatly.
5.Imported and high precise linear guide ways have features such as stable operation, high precision and steady support, which prolong service life of machines. 6. Z axis adopts imported ball screw with industrial level can positioning accurately and make processing effects more perfect.
6.Energy-saving vacuum absorption table function and dust collectors can protect the environment. Software has good compatibility. The machine can be compatible with various CAD/CAM design & making software such as TYPE3, Artcam, Artcut,so on.
Working Area (X*Y) | 1300mm*2500mm*200mm |
Table Type | T-slot table/PVC table with T-slot. |
X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
X,Y,Z Repositioning Accuracy | ±0.03mm |
Spindle | 3kw water cooling spindle |
Spindle Speed | 0-24000RPM |
Guider | Taiwan Hiwin Square Rail |
Transmission Type | XY gears pinion,Z axis with ø20mm ballscrews |
Control System | NC-studio control system |
Motor | Stepper motor |
Inverter | Sunfar Inverter |
Collets | 3.175mm/6mm/12.7mm |
Software | Artcam |
Command | G code*.u00*.mmg*.pl |
Voltage | 3P380v, 50/60 Hz |
Packing Size | 3200X2200X1800mm |
N.W. | 1600kg |
Warranty | 24 months for machine with 24 hours on-line technical support |
Optional parts: | 1.Dust Collects 4.Rotary axis 5.Different working area 6.Semi-auto lubrication system 7.Different power spindle |
