Power: | |
---|---|
Working area: | |
Availability: | |
Quantity: | |

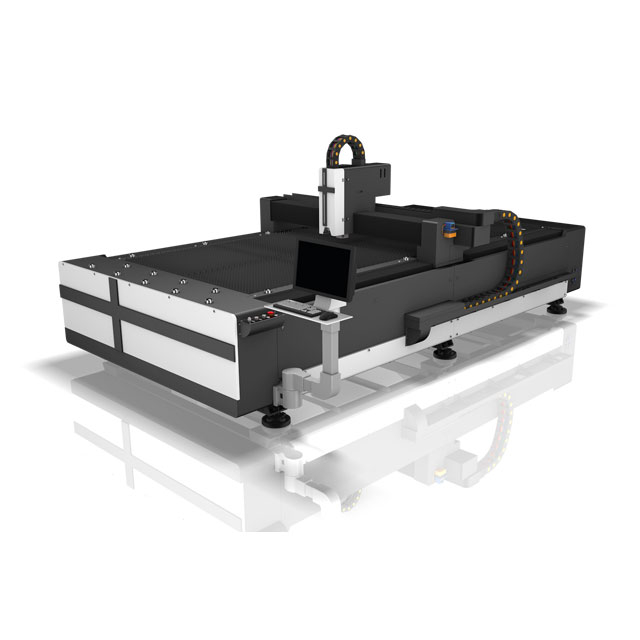

CF3015
Chengfeng
Advantage of Fiber laser cutting machine:
1.Moving crossbeam, imported high precision racks and linear guide rail, stable transmission, high precision.
2.Machine frame, crossbeam and worktable adopt integral welding structure.
3.X, Y and Z axes use imported Japan servo motor with high precision and speed.
4.Using professional and powerful Shanghai Cypcut fiber cutting controlling system that based on Windows operating system, with good Human Machine Interaction and easy operation.
5.Laser is produced without gas and it could use air to cut sheet metal
Advantage of Fiber laser cutting machine:
1.Moving crossbeam, imported high precision racks and linear guide rail, stable transmission, high precision.
2.Machine frame, crossbeam and worktable adopt integral welding structure.
3.X, Y and Z axes use imported Japan servo motor with high precision and speed.
4.Using professional and powerful Shanghai Cypcut fiber cutting controlling system that based on Windows operating system, with good Human Machine Interaction and easy operation.
5.Laser is produced without gas and it could use air to cut sheet metal

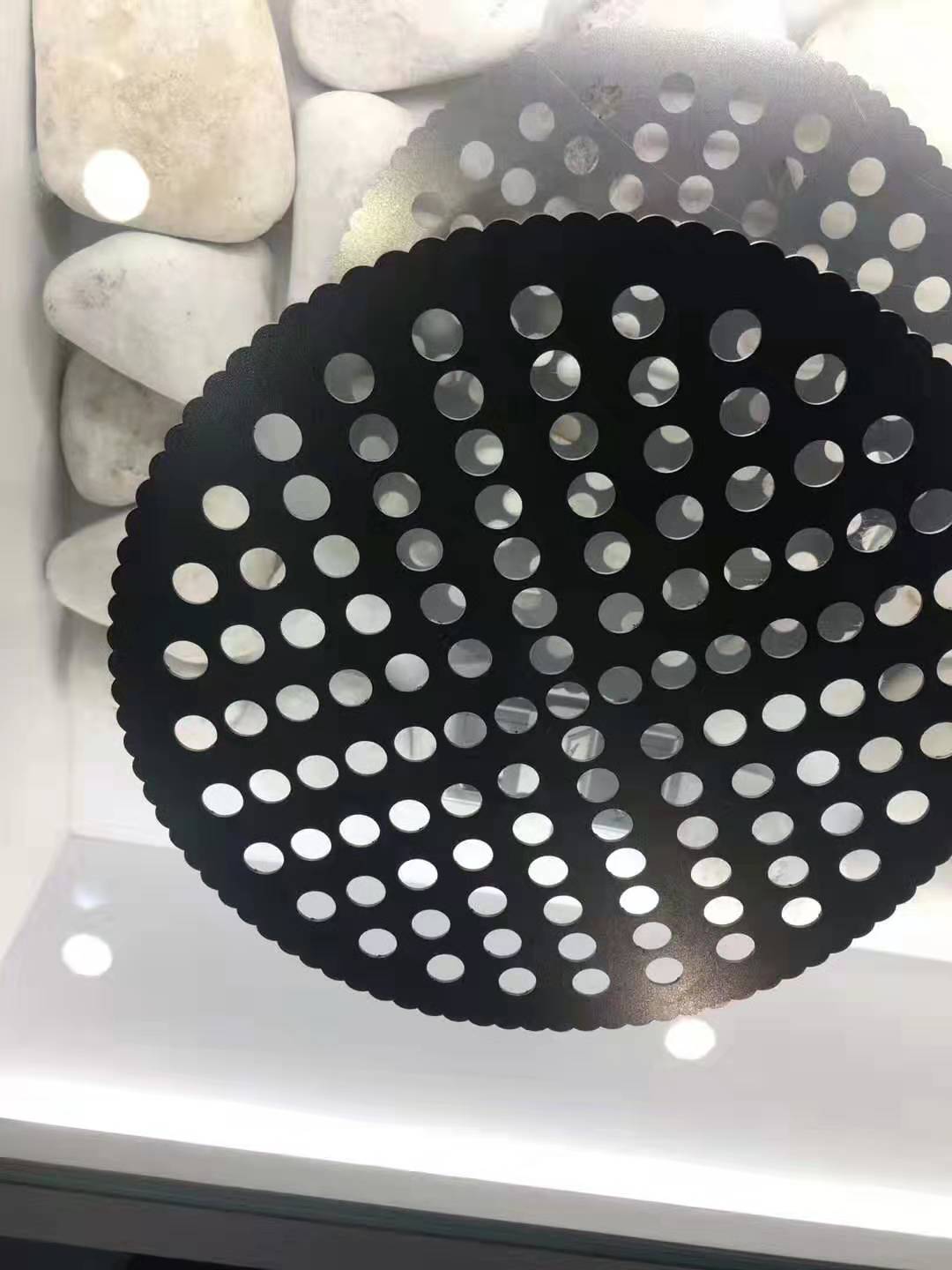

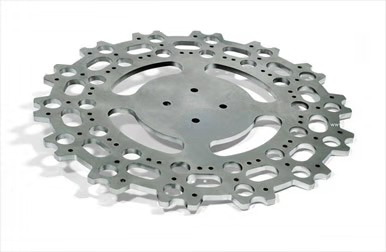

Applicable materials:
stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, gavanized steel, nickel titanium alloy, nikeel chromium alloy, titanium alloy and other metal materials.
Applicable materials:
stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, gavanized steel, nickel titanium alloy, nikeel chromium alloy, titanium alloy and other metal materials.
Parameter
Machine Model | CF3015 |
Laser type | Raycus or IPG |
Laser power | 500w 750w 1500w1000w 2000w 3000w 4000w |
Weight | 2000kg |
Dimensions | 4600mm*2450mm*1700mm |
Working area | 3000*1500mm |
Repeat positioning accuracy | ±0.02mm |
Maximum acceleration | 1G |
Transmission | double driver rack gear |
Power consumption | <10kW |
Power supply | 380V/50Hz/60Hz/60A |
Parameter
Machine Model | CF3015 |
Laser type | Raycus or IPG |
Laser power | 500w 750w 1500w1000w 2000w 3000w 4000w |
Weight | 2000kg |
Dimensions | 4600mm*2450mm*1700mm |
Working area | 3000*1500mm |
Repeat positioning accuracy | ±0.02mm |
Maximum acceleration | 1G |
Transmission | double driver rack gear |
Power consumption | <10kW |
Power supply | 380V/50Hz/60Hz/60A |
Features:
High quality laser source:imported original fiber laser 1000W,2000W,3000W(optional)
Untouched following system
Nlight laser powe source
Yaskawa servo system
Imported France dual rack gear
Motovoria speed reducer
Raytool cutting head
Auto partitioned exhausted system
Features:
High quality laser source:imported original fiber laser 1000W,2000W,3000W(optional)
Untouched following system
Nlight laser powe source
Yaskawa servo system
Imported France dual rack gear
Motovoria speed reducer
Raytool cutting head
Auto partitioned exhausted system
